This is the most powerful model, featuring the AP Racing 4-piston brake caliper, a professional sports model renowned in the global racing scene. It features a Garland Racing rotor, made of the highest quality FCD ductile cast iron, with a rotor diameter of 332mm and a rotor thickness of 32mm. Experience unparalleled braking power. This set price includes special brake pads, stainless steel mesh brake hoses, and a vehicle-specific bracket.
Floating brake rotors (front only) are designed so that the bell housing (which is fixed to the hub body once the tire is installed) and disc rotor are not fixed in place and can move about 0.2 mm thanks to the bobbin (floating) in the bell housing. Normal types are fixed and naturally do not move. This movement allows judder to escape during braking and reduces vibration. Slotted rotors are prone to judder, so floating is sometimes used. This structure was first used in motorsports cars (GT racing) and on production cars, on the Nissan GTR. Designed specifically for each vehicle, it allows for bolt-on installation.

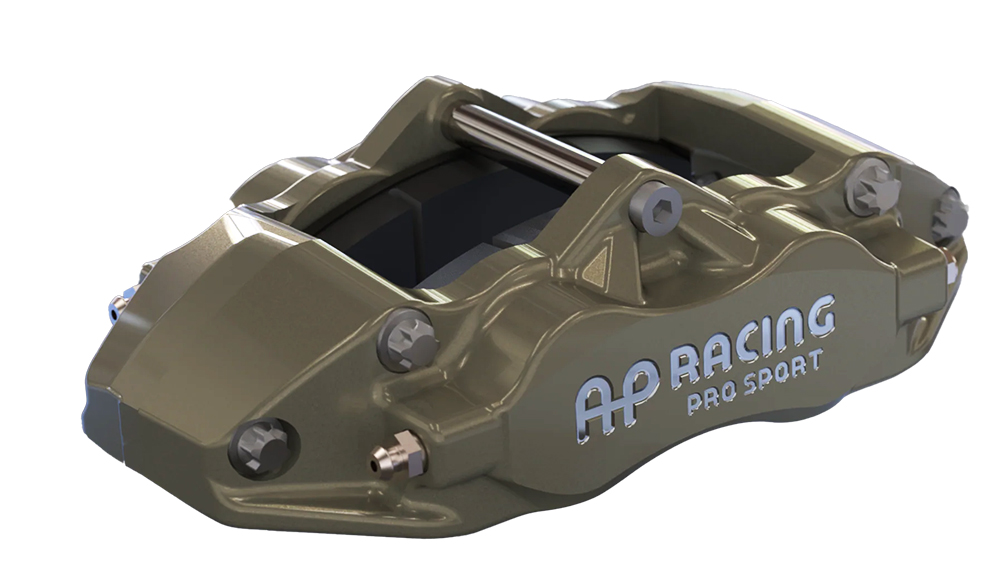

S2000 AP1/2 AP Racing Brake System KIT/Type-4POT PRO SPORT
The AP Racing Brake System Kit offers excellent value for money, featuring the AP Racing 4-piston front caliper, a professional sports model renowned in the global racing scene. The rotors are Garland Racing rotors, made from the highest quality racing-type FCD ductile cast iron. Experience unparalleled braking power. This set price includes special brake pads, stainless steel mesh brake hoses, and vehicle-specific brackets.
■High-rigidity duralumin bell housing ■Brake pads/Special Winmax ■Brake hose/Special stainless steel mesh brake hose ■Bracket/Special high-rigidity duralumin bracket
Price range: ¥562,000 through ¥572,000 Tax excluded
This is the best front brake system for Honda vehicles, combining a large diameter rotor with a 4-piston brake caliper made by AP Racing, which is famous in the racing world. This is the ultimate brake system that will not let you feel any loss of braking performance, not only on the street but also on long drives on the circuit.
|
Type 4PS/332-32/Pro Sports Model |
Caliper / Large-capacity big aluminum block 4-piston racing caliper / Professional sports model |
|---|
■Please note that installation may not be possible depending on the wheel size, wheel shape, and offset size. Also, please note that adjustments may be required using wheel spacers, etc.
■ Installation and use are at your own risk. Some parts require specialized knowledge and tools, so be sure to consult a specialized shop. After installation, be sure to give this manual to the customer.
■Please note that we are not responsible for any malfunctions or accidents caused by processing, improper assembly, or misuse of this product.
